Screw jacks (Ball screw)
JB, JBH and JTB Series
JB Series standard screw jacks (ball screw)
A high performance ball screw has been adopted that offers high-efficiency, low noise operation.
Features
This series uses a high-performance ball screw.
The nut and worm wheel have been integrated for a more compact design.
The Worm Speed Reducer is lubricated with an oil bath. This gives it ample durability even during high-speed operation.
An ideal bearing structure offers high performance.
A wide variety of standard jacks is available from 5 kN to 1250 kN.
Structure
[JB005 & JB010]
Screw shaft end
Select from a rich variety of fitting configurations.
High precision, large screw shaft
This series uses a ball screw.
Ideal bearing structure
This series uses a tapered roller bearing that is durable against both thrust and radial loads.
Integrated ball nut and worm wheel
Because the structure allows for the load to be stably and uniformly distributed on the ball nut, safety is improved and the product life is extended.
High precision worm wheel
This series uses a special aluminum bronze material which has been machined with high precision and offers ample strength.
Screw shaft guide
A screw guide is provided on the ball nut to minimize drift of the screw.
High efficiency reduction
This design offers the benefits of many years of experience with Worm Speed Reducer.
Grease lubrication
Grease lubrication offers easy maintenance.
Light weight housing
The housing is manufactured from diecast aluminum and is both lightweight and compact.
Large input shaft
This series offers ample strength for the use of multiple connected jacks.
This jack operates by turning the input shaft (worm shaft), rotating the worm wheel (nut) and this movement is transmitted as propulsive force to the screw shaft.
The worm section and screw section are both lubricated with grease.
*Because a ball screw does not have holding force, a brake mechanism is necessary.
[JB025 to JB1250]
*Only significant differences with the JB005 to JB010 models are explained.
Ideal bearing structure
A tapered roller bearing is used and in heavy load applications a thrust self-aligning roller bearing is used.
Oil bath lubrication
Oil bath lubrication makes high-speed operation possible and offers easy maintenance.
Tough housing
Models number 100 and above use cast steel for the housing and models 025 to 075 use ductile cast iron (FCD450).
Cast steel production is also available.
End cap
The end cap is convenient for inspecting the screw shaft.
*Because a ball screw does not have holding force, a brake mechanism is necessary.

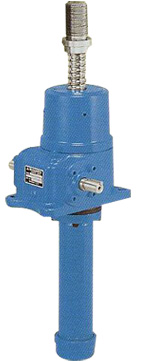

![[JB Series]](../images/products/products_jacks_sb_jb.jpg)
[JB Series]
JBH series hi-lead screw jacks (ball screw)
Hi-lead specifications A high speed jack with a larger screw lead
Features
High speed operation Each model is capable of high speed operation with a maximum operating speed of 5.9 to 8.4 m/min.
When operating at the same speed as the JB standard series, noise is reduced because the input shaft speed is decreased.
Standard models are available from 25 kN to 200 kN.
![[JBH Series]](../images/products/products_jacks_sb_jbh.jpg)
[JBH Series]
JBH Series basic specifications
| Model | 005 | 010 | 025 | 050 | 075 | 100 | 150 | 200 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal capacity (kN) | 5 | 10 | 25 | 50 | 75 | 100 | 150 | 200 | ||
| Screw shaft diameter (mm) | 16 | 20 | 25 | 36 | 40 | 45 | 50 | 63 | ||
| Screw shaft root diameter (mm) | 13.6 | 17.3 | 21 | 31 | 34 | 38 | 42 | 55 | ||
| Screw pitch (mm) | 16 | 20 | 25 | 36 | 32 | 32 | 32 | 32 | ||
| Reduction ratio | H | 6 | 6 | 7.67 | 7.67 | 7.67 | 7.67 | 7.67 | 7.67 | |
| Ｌ | 23 | 23 | 23 | 23 | 23 | 23 | ||||
| Traveling distance per one input shaft rotation |
H | 2.67 | 3.33 | 3.26 | 4.69 | 4.17 | 4.17 | 4.17 | 4.17 | |
| L (mm/rev) | 1.09 | 1.57 | 1.39 | 1.39 | 1.39 | 1.39 | ||||
| Efficiency (%) | H | (30rpm) | 58 | 59 | 57 | 57 | 56 | 59 | 58 | 58 |
| (1800rpm) | 71 | 72 | 71 | 72 | 72 | 73 | 74 | 74 | ||
| L | (30rpm) | 37 | 36 | 35 | 39 | 38 | 38 | |||
| (1800rpm) | 58 | 58 | 59 | 62 | 63 | 63 | ||||
| Max input speed (rpm) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | ||
| Standard stroke (mm) | Stroke of 50 to 500 (50 mm intervals), 500 to 1000 (100 mm intervals) | |||||||||
| Screw torque (N･m) | 13.2 | 33 | 103 | 297 | 399 | 534 | 805 | 1086 | ||
| Input no load torque (N･m) | 0.15 | 0.2 | 0.5 | 0.8 | 1.2 | 1.8 | 2.5 | 2.5 | ||
| Input starting torque | H (N･m) | 1.9 | 4.8 | 25.9 | 75.3 | 101.5 | 128.1 | 194.0 | 257.8 | |
| L (N･m) | 14.7 | 43.3 | 58.9 | 71.3 | 108.9 | 144.3 | ||||
| Holding torque | H (N･m) | 1.1 | 2.9 | 5.9 | 15.8 | 20.2 | 32.9 | 47.6 | 63.5 | |
| L (N･m) | 2.7 | 9.0 | 13.0 | 11.2 | 18.6 | 24.9 | ||||
| Reversing load (kN) | 5 | 10 | 25 | 50 | 75 | 100 | 150 | 200 | ||
| Load at rest (kN) | 8 | 15 | 25 | 50 | 80 | 140 | 170 | 250 | ||
| Weight (kg) | 2.5 | 3.5 | 20 | 25 | 35 | 55 | 65 | 80 | ||
Note: 1. The weight is an estimated value for a stroke of 300 mm.
2. Screw torque, input starting torque and holding torque are the values at nominal capacity.
JTB Series traveling nut screw jacks (ball screw)
Features
The operation of the traveling nut minimizes the necessary space for installation in the axial direction.
Structure
[*The structure describes models of 025 to 1250.]
Integrated ball nut and traveling nut
Because the structure allows for the load to be stably and uniformly distributed on the ball nut, safety is improved and the product life is extended.
High precision, large screw shaft
This series uses a ball screw.
Ideal bearing structure
This series uses a tapered roller bearing and uses a thrust self-aligning roller bearing for heavy loads.
High precision worm wheel
This series uses a special aluminum bronze material which has been machined with high precision and offers ample strength.
Large input shaft
This series offers ample strength for the use of multiple connected jacks.
High efficiency reduction
This design offers the benefits of many years of experience with Worm Speed Reducer.
Tough housing
Models number 100 and above use cast steel for the housing and models 025 to 075 use ductile cast iron (FCD450). Cast steel production is also available.
Oil bath lubrication
Oil bath lubrication makes high-speed operation possible and offers easy maintenance.
Models 005 and 010 are lubricated using a grease bath for the worm section and grease lubrication for the screw section. Models 025 to 200 are lubricated using an oil bath for the worm section and grease lubrication for the screw section. A baffle is necessary for the traveling nut. (Refer to the screw torque in the basic specifications.)

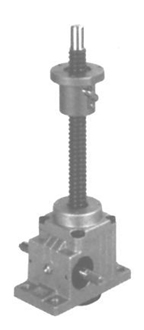

![[JTB Series]](../images/products/products_jacks_sb_jtb.jpg)
[JTB Series]
